Zen Attached Pergola Bracket Kit for Roof Rafters – Up to 24' x 24'

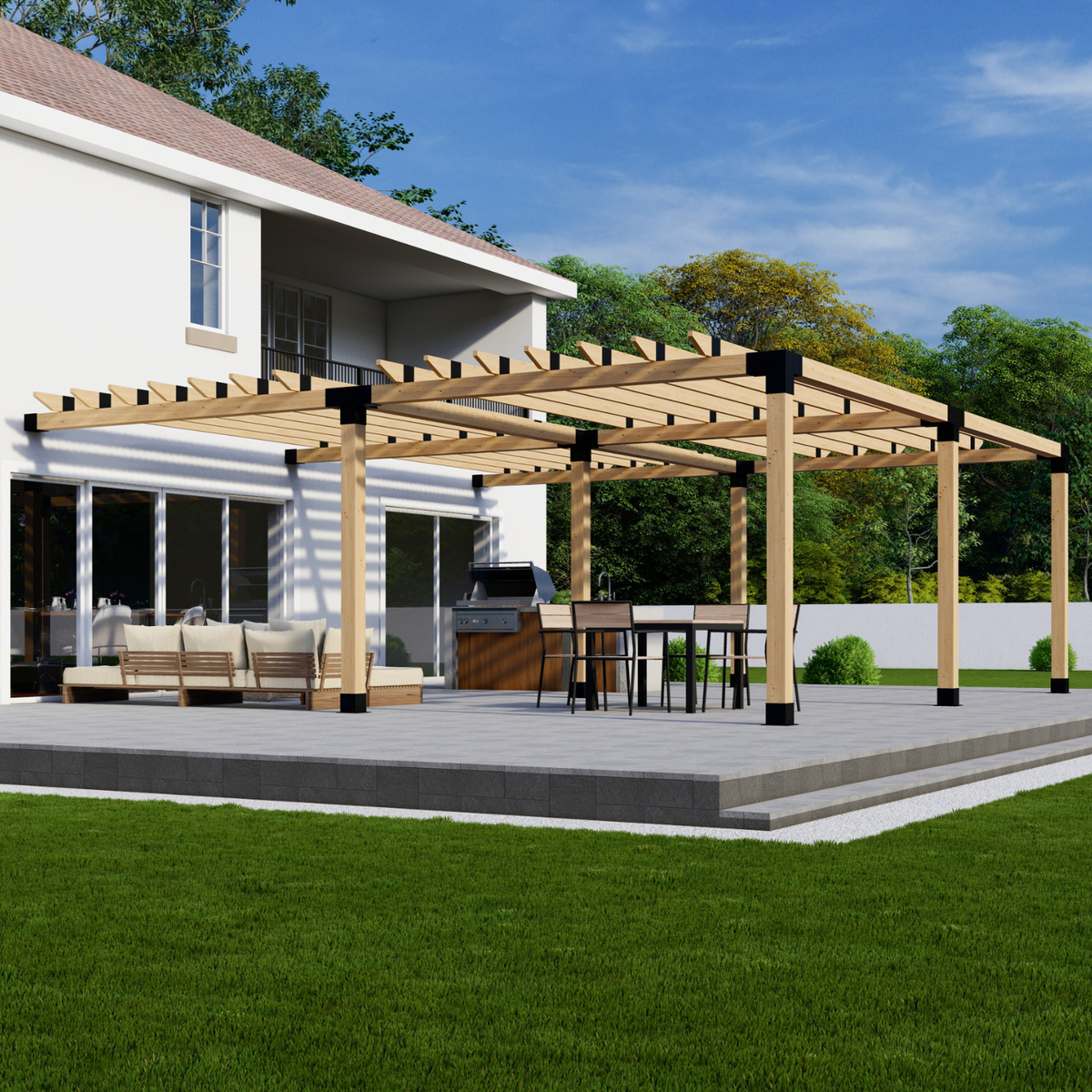

The Zen Attached Pergola Bracket Kit provides a coordinated steel bracket system for constructing a six-post pergola attached to a house. Designed for a four-block configuration, the system supports custom pergola dimensions up to 24' x 24'.

The bracket layout accommodates traditional roof rafters installed above the roof beams and allows optional rafter overhangs. Choose between brackets for 4x4 posts with 2x4 rafters or 6x6 posts with 2x6 rafters. The brackets are laser-cut, laser-welded, pre-drilled, and finished with a weather-resistant exterior coating.

Specifications

• Pergola type: Attached
• Post configuration: Six posts
• Layout: Four-block configuration
• Maximum pergola size: 24' x 24'
• Bracket options: 4x4 posts with 2x4 rafters or 6x6 posts with 2x6 rafters
• Roof configuration: Traditional rafters installed above the roof beams
• Steel thickness: 12-gauge steel for 6x6 brackets; 14-gauge steel for all other bracket sizes
• Warranty: Five years on all brackets

Features

• Designed to fit common dimensional lumber sizes
• Supports custom pergola dimensions up to 24' x 24'
• Accommodates optional roof-rafter overhangs
• Laser-cut and laser-welded steel construction
• Weather-resistant exterior coating
• Pre-drilled holes for attaching lumber and compatible accessories
• Available in two lumber-size configurations

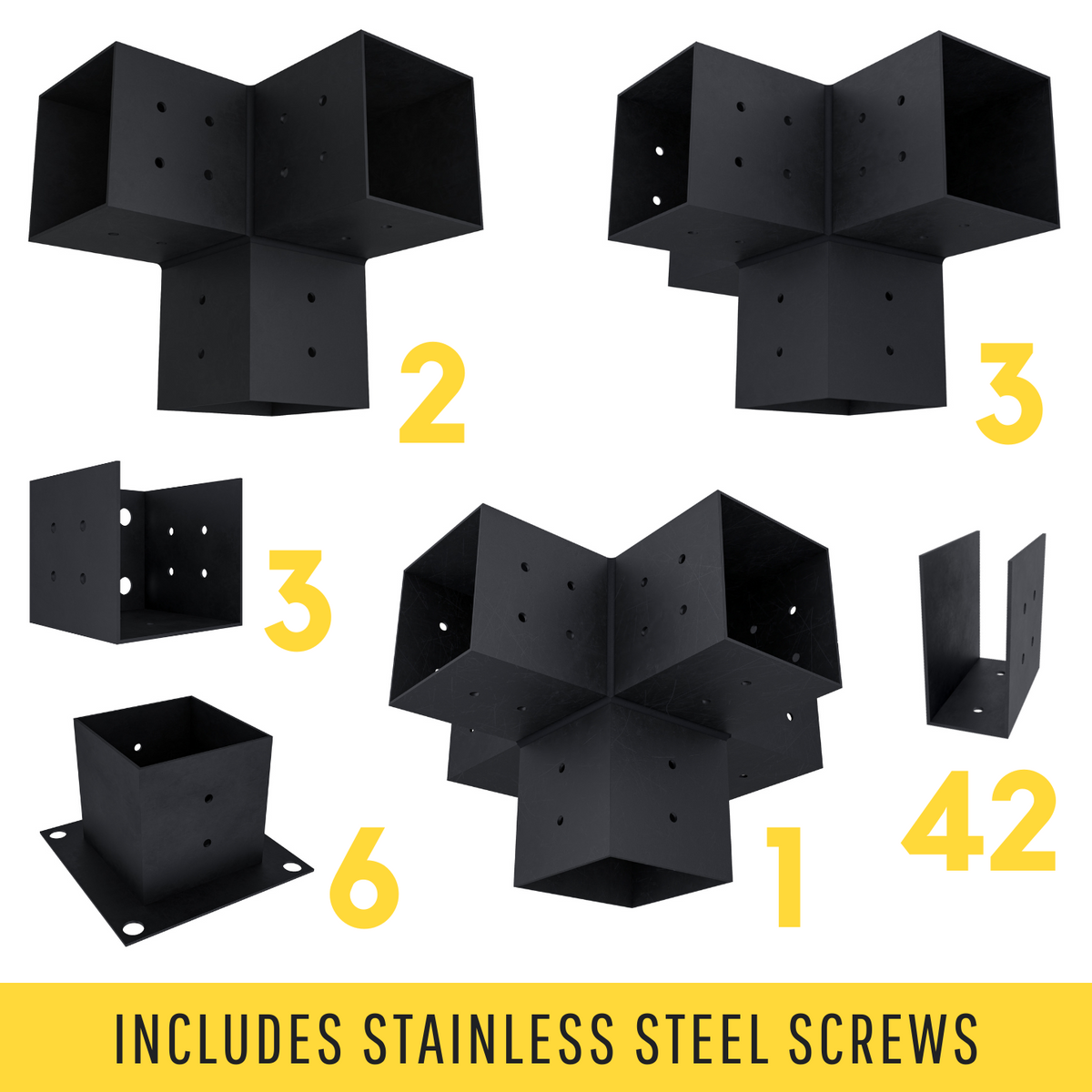

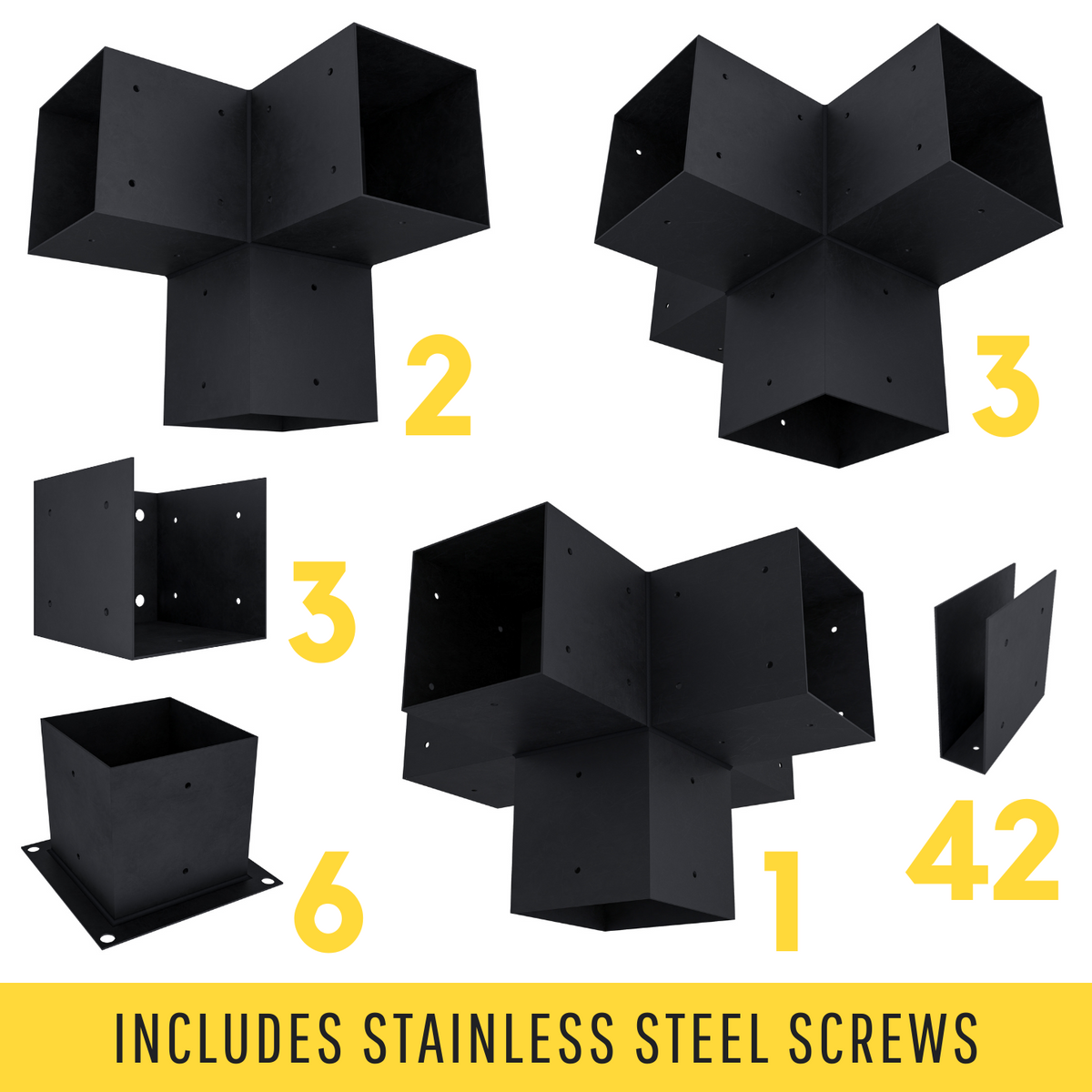

Package Contents

• 6 post-base brackets
• 3 wall-mount brackets
• 2 corner three-arm brackets
• 3 middle four-arm brackets
• 1 central five-arm bracket
• 42 roof-rafter brackets
• Stainless steel #12 wood screws

Not included: Lumber and anchoring hardware for securing the post-base and wall-mount brackets are sold separately.
